SSB Position plays a vital role in 5G(Post)

SSB Position plays a vital role in 5G(Post)

Did you know that 5G SSB Frequency domain position can influence and impact many KPIs, including Access time, UE Battery consumption, Handovers, and Interference?

Let`s discuss in this article, How SSB frequency domain position can impact above mentioned KPIs!


1- What main concerns and recommendations need to be considered when configuring the SSB Frequency position?

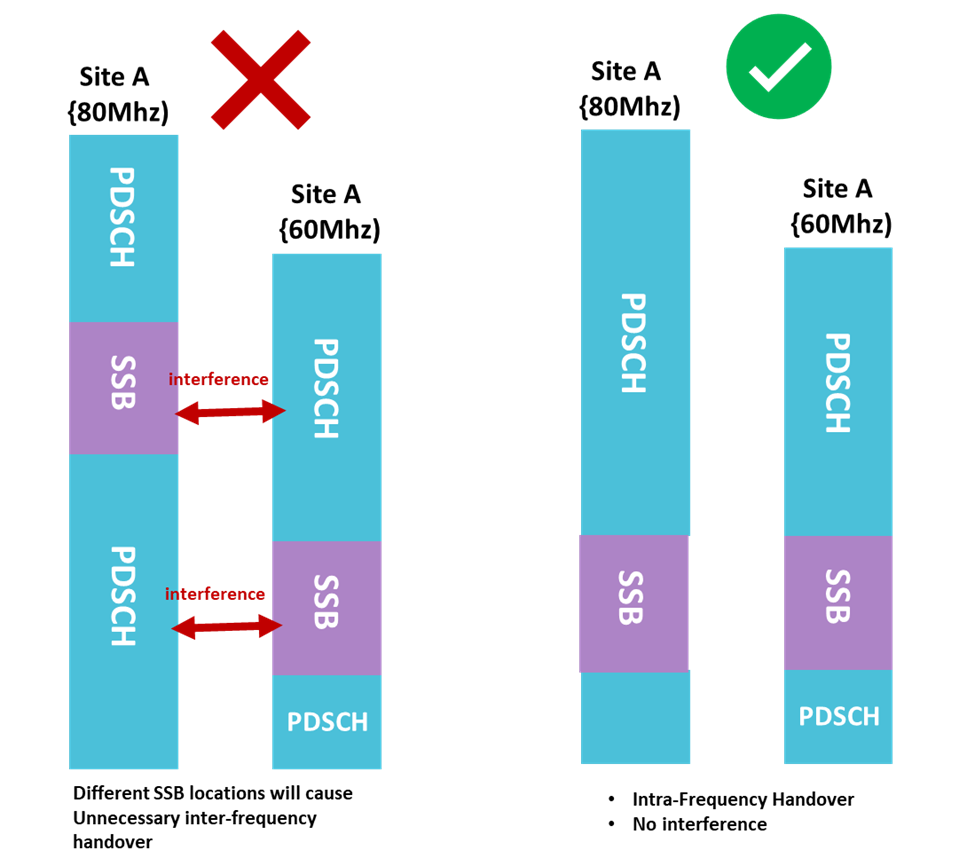

1- In case you have different Bandwidth configurations operating under the same frequency band. Locate SSB at the exact Frequency location for all sites. As this will reduce the unnecessary inter-frequency handovers and will also mitigate the interference caused by SSB <--> PDSCH

Example: n78 operating with 80Mhz at Site A and with 60Mhz at Site B

No alt text provided for this image

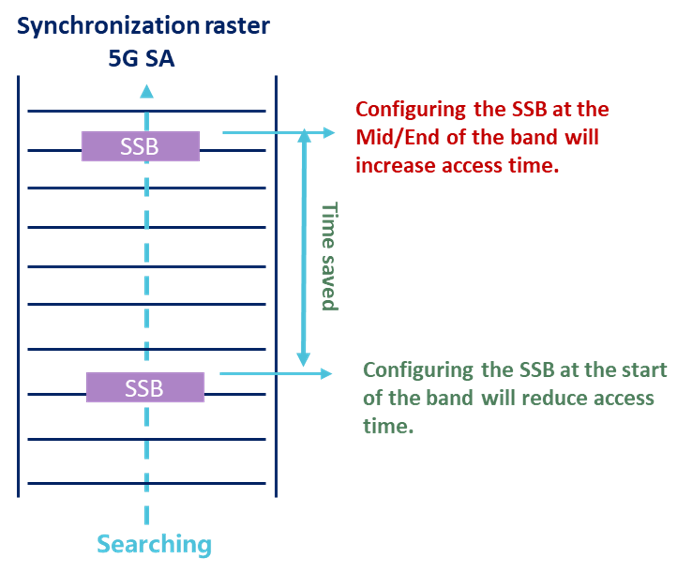

2- It`s recommended to configure the SSB frequency domain position at the bottom/start of the band, especially in 5G Standalone, to reduce the cell search time and, accordingly will, improve the access delay and UE Battery consumption.

No alt text provided for this image
